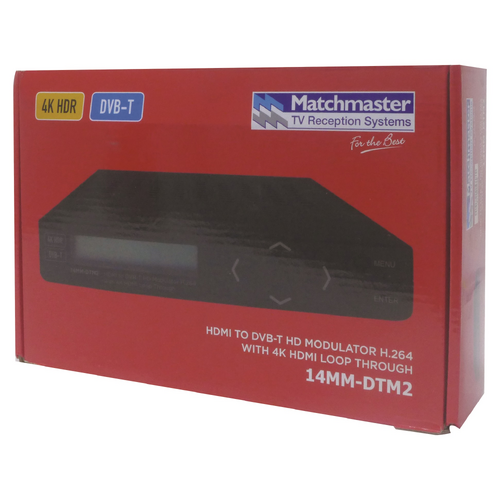

MM HDMI® to DVB-T HD Modulator H.264 with 4K HDMI® Loop Through
1 unit
$924.00
In Stock
HDMI® to DVB-T HD Modulator H.264 with 4K HDMI® Loop Through
Product Summary
The DTM2 is a H.264 high definition encoder modulator featuring a 4K HDMI® loop through connection, enabling you to retain your 4K quality image at your main TV while downscaling and modulating the signal at 1080p simultaneously to distribute to the rest of the TV's in your home.
Features and Benefits
- HDMI® high definition modulator with 4K HDMI® loop through
- Supports video input resolutions 480i/p, 576i/p, 720p, 1080i/p, 4K (3840x2160 or 4092x2160)
- Perfect for sharing your HDMI® source to all TV's in your home
- LED display and push-button control of internal microprocessor
- RF output range 65-95dBμV
- MER >30dB
Specifications
| Source Input | |
|---|---|
| Input Channel | 1 |
| Video | HDMI |
| Video System | 480i/p, 576i/p, 720p, 1080i/p, 4K (3840x2160 or 4096x2160) |
| Audio System | HDMI |
| Compression | |
| Video | H.264 Baseline Profile Level 4.0 |
| Video Resolution | 1080p 25/30 Max |
| Video Bit Rate | 18Mbps Max |
| Audio | MPEG-2 / AAC |
| DVB Insertion Tables | SDT, NIT |
| Editable Field | Service Name, Network Name, Provider Name, TS ID, Network ID, Original NET ID, LCN, NIT Version, Private Data, Country |
| RF Output | |
| Type | 1 Multiplex DVB-T with a digital TV service |
| Frequency | 177-858MHz |
| MER | 30dB Min. |
| Output Level | 100dBµV |
| RF Level Adj. | 0dB ~ -30dB |
| Attenuation Step | 1dB per step |
| Connections | |
| HDMI In | HDMI In |
| HDMI Out | 4K Pass Through |
| RF Output | 1 DVB-T RF output with type F female, 75 ohm |
| RF Input | RF combiner |
| General | |
| Modulation | Standard DVB-T (ETSI EN 300 744) Constellation QPSK, 16QAM, 64QAM Guard Interval 1/4, 1/8, 1/16, 1/32 Code Rate 1/2, 2/3, 3/4, 5/6, 7/8 FFT Carriers Mode 2K, 8K Bandwidth 6MHz, 7MHz, 8MHz, 7-8MHz |
| Power Supply | 12V Adaptor |
| Display | LCD panel @ 2 x 16 characters (on front panel). |
| Configuration | 6 Local keys on front panel: - ENTER Key: Select parameter, or menu - L / R Keys: Move menu, or characters - Up / down: Select value of the figure, or field - MENU keys: Return to start menu |
| Environmental for operating | Temperature: 5°C-40°C Relative Humidity: 80% @ 30°C |
| SKU | MM-14MM-DTM2_1 |
| Barcode # | 2206000088 |
| Brand | Matchmaster |
